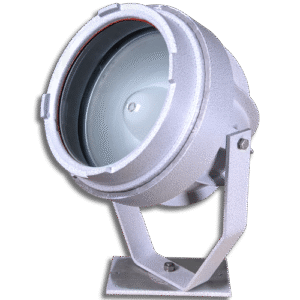

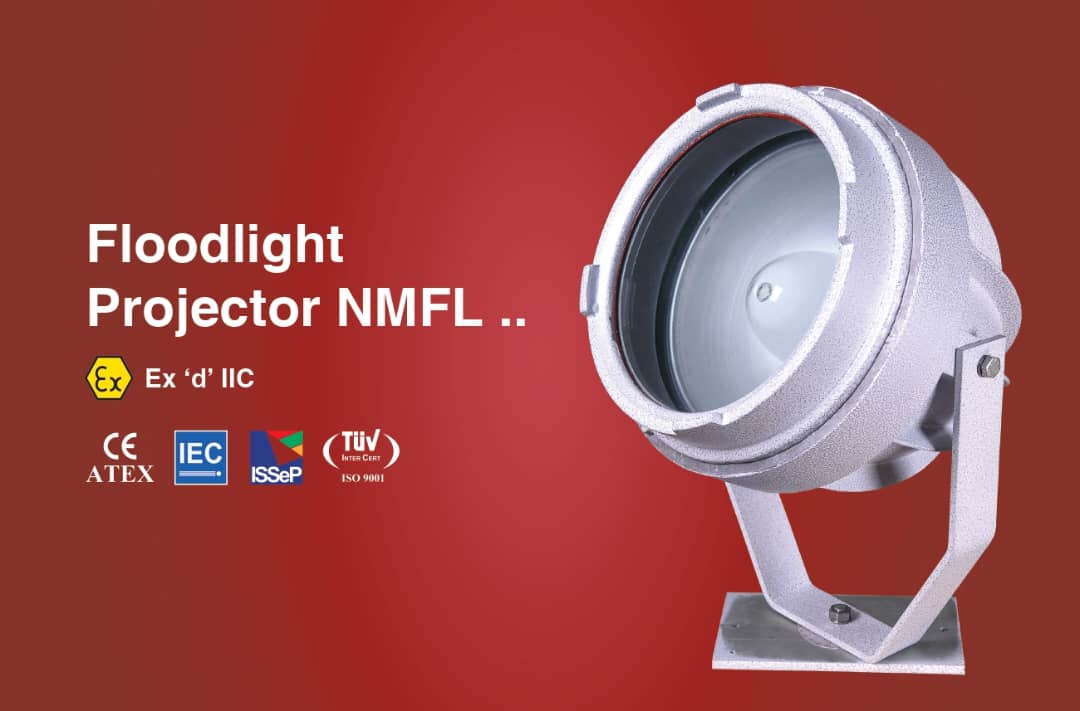

پروژکتور

• Enclosure: Copper free aluminum alloy suitable for petroleum and marine locations.
• Glass: Heat and impact resistant tempered glass sealed onto a threaded metal base.
• Lamp holder: E40, for up to 400 W discharge lamps or 500 W incandescent and blended lamps.
• Power unit: For discharge lamps a separate enclosure is used to accommodate ballast, starter (or capacitor), to avoid direct heat from the lamp damaging these components and give much longer service life.
• Reflector: Built in aluminum reflector supplied as standard.
• IP rating: IP66 to IEC 529/EN 60529.
• Installation: Designed to be installed and rotate in any horizontal or vertical direction.
• Cable entry: ISO 965.1 metric as standard. NPT or other threads supplied on request.
• Earthing: Standard M6 internal and external earth screws.
• Finish: Electrostatic powder coated or two pack epoxy paint.

Options:

• Cable gland.
• Lamp.
• For 250-watt discharge lamps only: power unit can be mounted on floodlight enclosure.
